Hurricane 500

* Machines are constantly being updated and may vary from picture

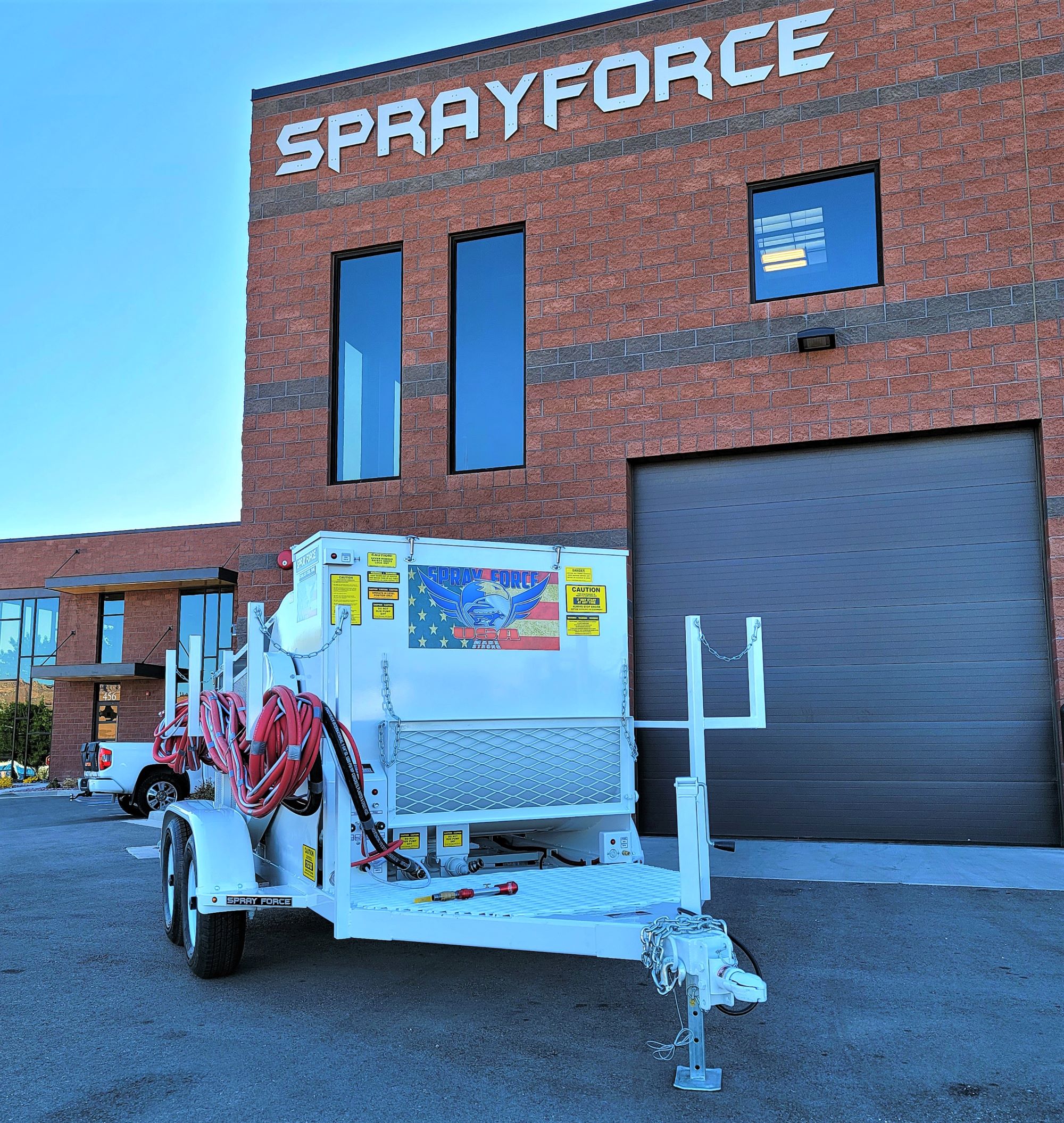

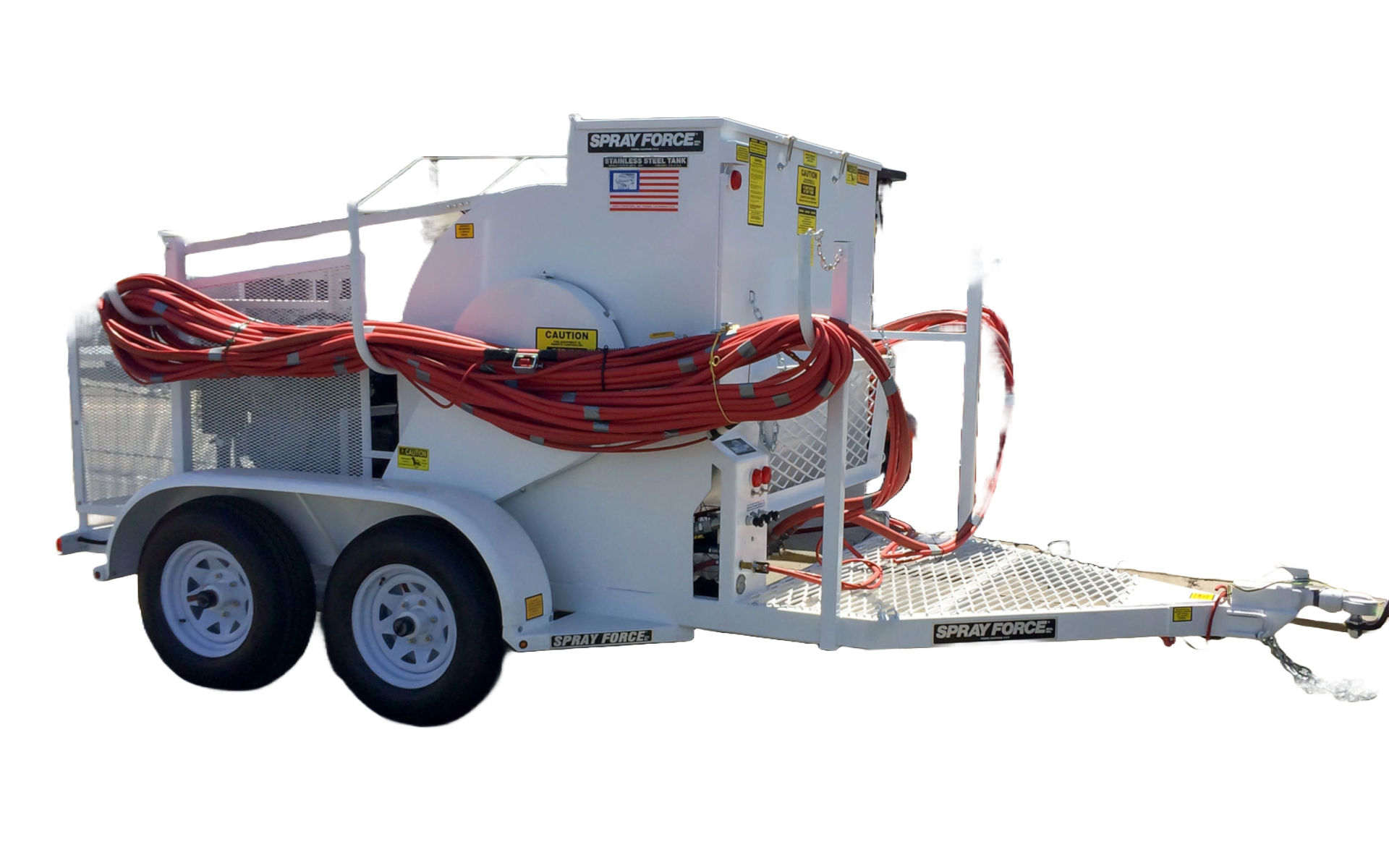

The Hurricane 500 XR is a large, hydraulically operated, towable drywall texture machine featuring either a single 527 gallons or split 343/184 gallons stainless steel mixing tank with one or two 2L4 rotor stator pumps. The pump and mixer can be infinitely controlled over its operating range for superior speed control.  This machine is ideal for medium to large sized jobs and requires a 1-ton tow vehicle.

Every Hurricane series machine comes standard with an Automatic Self Compensating “Smart System” that automatically adjusts hydraulic oil flow to save fuel and reduce equipment wear & tear. Also standard is what we like to call, The Circle Of Trust, keeping your equipment pumping longer and better than anything else available.

In addition, each machine uses a state-of-the-art hydraulic oil system to maximize efficiency, reduce equipment weight, and extend the life of the equipment’s vital parts.

Hurricane 500

Engine Hatz 37HP Diesel
Pressure Compensating Hydraulics
Mixer Capacity 71 cu. ft. ( 527 gallons)
Pump 2L4 Rotor-Stator
Compressor Quincy 340
Torque-Flex Trailer Frame
Infinite Speed Control



Split Tanks 46 cu. ft. ( 343 gallons) / 25 cu. ft. ( 184 gallons)

Machine Warranty

We are the manufacturer of the Hurricane 500, so we know your Spray Force machine inside and out. We also know the quality and care that goes into every piece of equipment that we produce. That makes it easy for us to offer a warranty on every machine we create.
